Move SEIL manipulator for front and rear windows

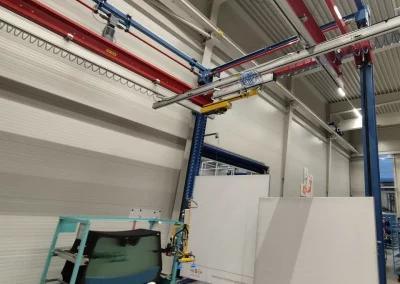

Ein Foto eines Manipulators im Schienensystem mit welchem ein Verdeck in einen Porsche 911 eingesetzt wird.

This is where our pneumatic SEIL manipulator is used to move front and rear windows. To cover a large working area, it can be moved along a light-duty crane rail system. A telescopic extension was integrated into the bridge rail to allow the manipulator to navigate around the hall columns. The lifting motion is controlled by a pneumatic balancing system to ensure movements that are as smooth and precise as possible. The windows are swiveled continuously using a joystick on the integrated control unit. This makes it easy to adjust the windows to the various angles required by the special load carrier and the storage configuration.

Discover the SEIL Manipulator

other articles

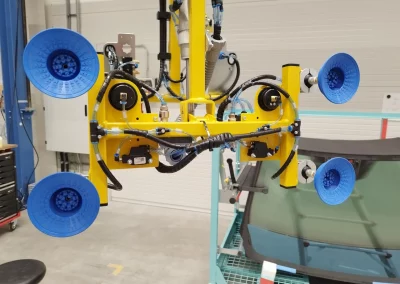

Ein Foto mit einer gelben Aufnahmevorrichtung mit Sauggreifern welche eine Frontscheibe eines Fahrzeugs aufgenommen hat.
Move SEIL manipulator for front and rear windows

27.11.2025

This is where our pneumatic SEIL manipulator is used to move front and rear windows. To cover a large working area, it can be moved along a light-duty crane rail system. A telescopic extension was integrated into the bridge rail to allow the manipulator to navigate around the hall columns. The lifting motion is controlled by a pneumatic balancing system to ensure movements that are as smooth and precise as possible. The windows are swiveled continuously using a joystick on the integrated control unit. This makes it easy to adjust the windows to the various angles required by the special load carrier and the storage configuration.

Ein orangener Knickarm Manipulator mit einer Greifvorrichtung zum Aufnehmen von Rotoren eines Elektromotors
PARALLEL manipulator for electric motor rotors

13.10.2025

Here, our PARALLEL manipulator is used with a gripping device for handling rotors. The rotors are gripped by interchangeable gripping jaws around their circumference. Our stepless up/down control system enables extremely precise and fast movements. Thanks to the endless rotary joints on the rotational axes, the pneumatic manipulator can be moved freely throughout the space without any restrictions.

Ein Schreenshot eines Schwenkauslegers mit einem HUSCH Seil Manipulator und einer Aufnahmevorrichtung für verschiedene Bauteile
SEIL manipulator for plastic parts and cartons

13.06.2025

Here, our pneumatic SEIL manipulator is used on a slewing jib. Thanks to the lightweight construction of our swivel slewing jibs and the counterbalance control with adjustable load weight, the components can be handled with virtually no resistance. The combined gripping device features suction grippers for picking up the cardboard boxes. The plastic part to be unpacked is picked up by an integrated gripping unit. The various component lengths can be adjusted using locking pins.
